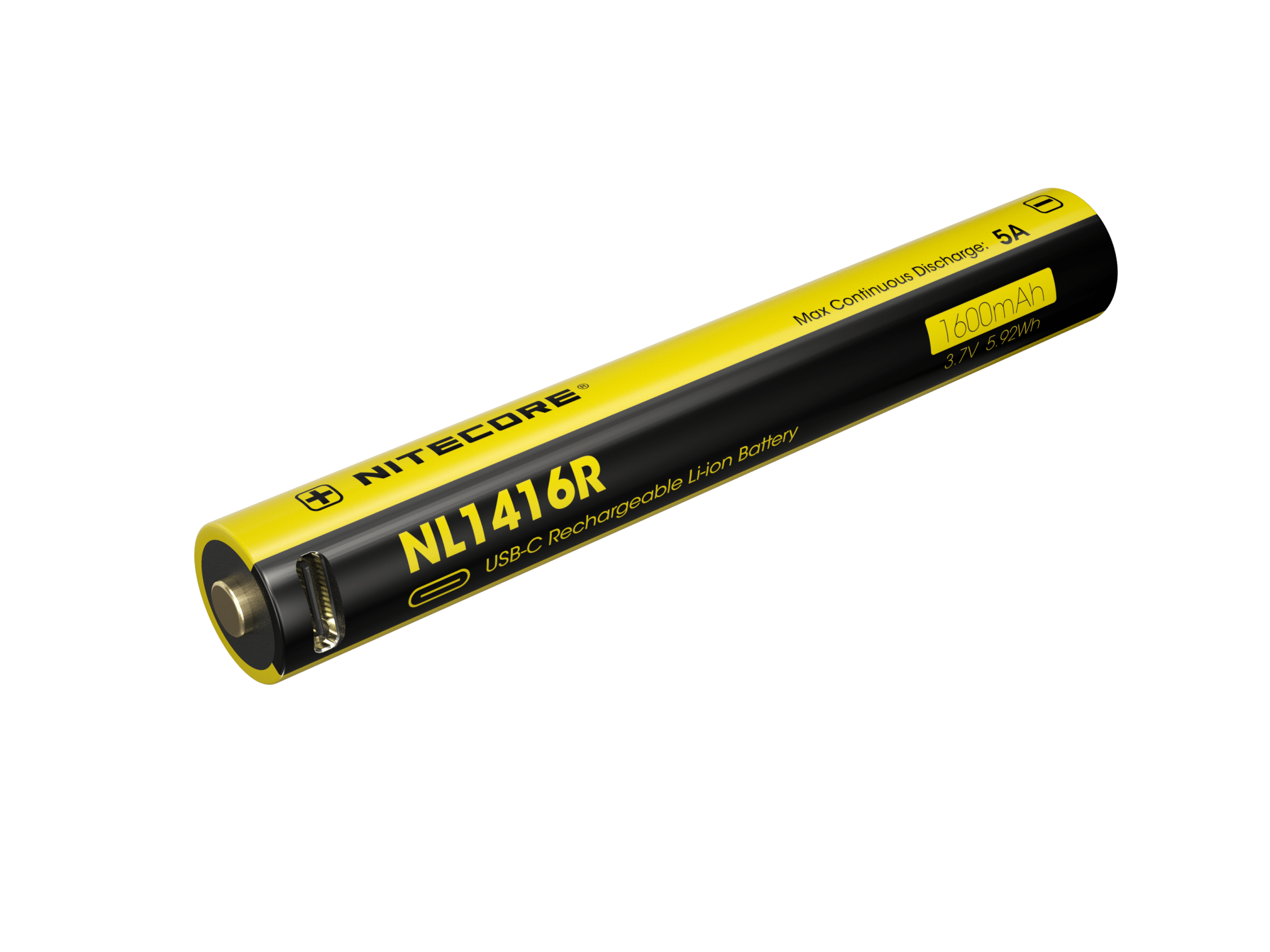

PRODUCT SPEC
Capacity
1,600mAh 3.7V 5.92Wh
Continuous Discharge Current
5A
Length
98.4mm±0.3mm / 3.87"±0.01"
Diameter
14.2mm±0.3mm / 0.56"±0.01"
Chemistry
Li-ion NMC Battery
Manufacturer
SYSMAX Innovations Co., Ltd.
Address
No.1021 Gaopu Road, Guangzhou, China
EU Authorised Representative
Lienco SAS, 8 Rue Marcel Cerdan, 77600, Bussy Saint Georges, France
Usable Extinguishing Agent
Water / Water mist
Critical raw materials present in the battery in a concentration of more than 0.1 % weight by weight
| Information on Ingredient (Chemical Name) |
Concentration or Concentration Ranges (%) |
Information on Ingredient (Chemical Name) |
Concentration or Concentration Ranges (%) |
| Lithium Manganese Nickel And Cobalt |
15~40 |
Carbon Black |
1~2.5 |
| Polyvinylidene Fluoride(PVDF) |
0.5~1 |
Graphite |
10~25 |
| Carboxymethylcellulose |
0.2~0.5 |
Styrene-Butadiene Rubber(SBR) |
0.5~1 |
| Polyethylene |
1.5~3 |
Lithium Hexafluorophosphate |
10~15 |
| Copper |
4~10 |
Aluminum |
2~10 |
| Nickel |
2~10 |
Fe |
10~30 |
