NL166

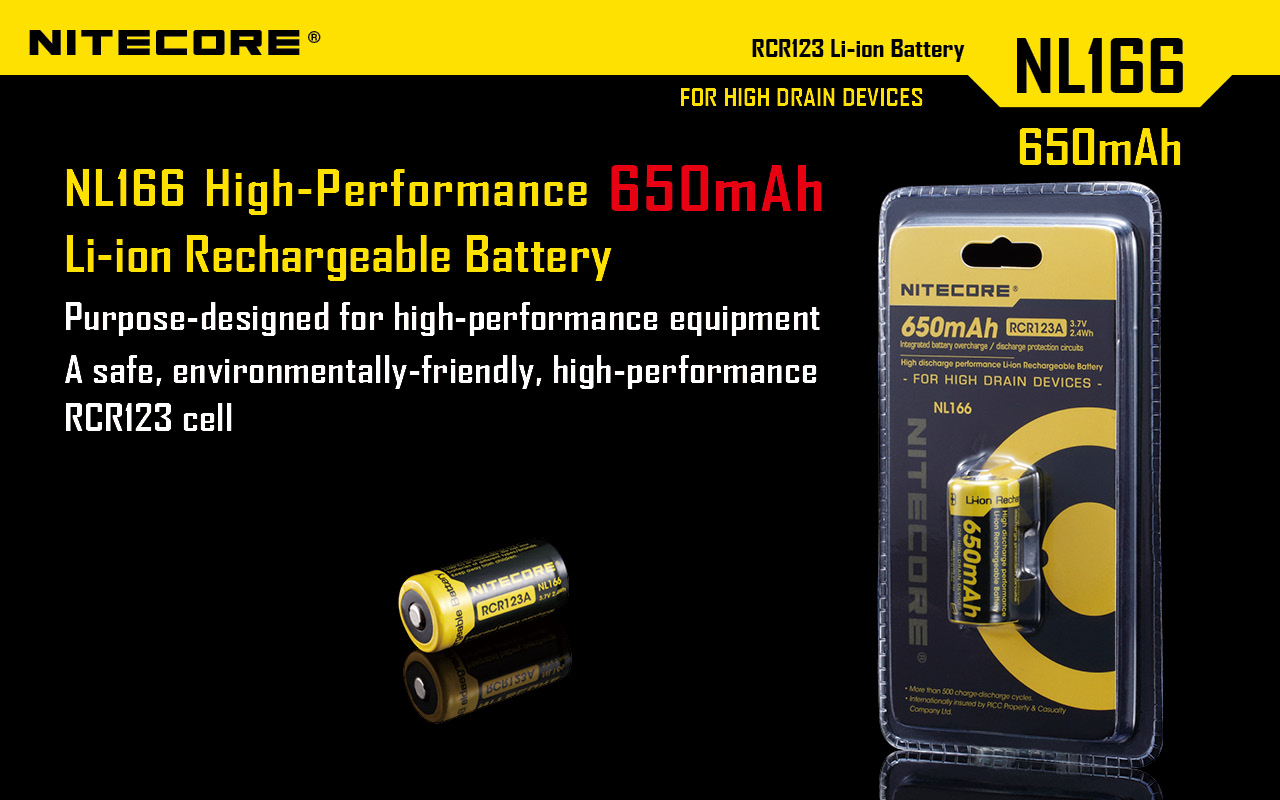

High-Performance Li-ion Rechargeable Battery
PRODUCT SPEC

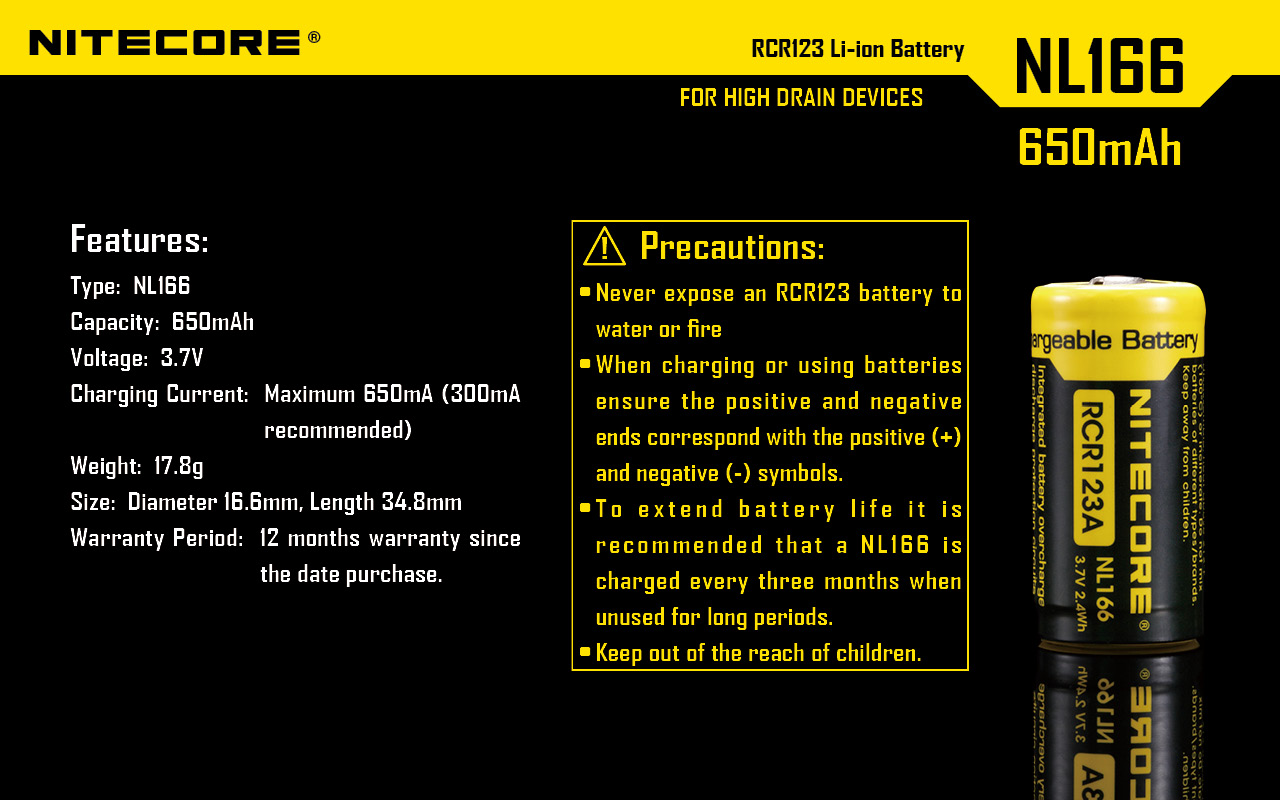

Model
NL166

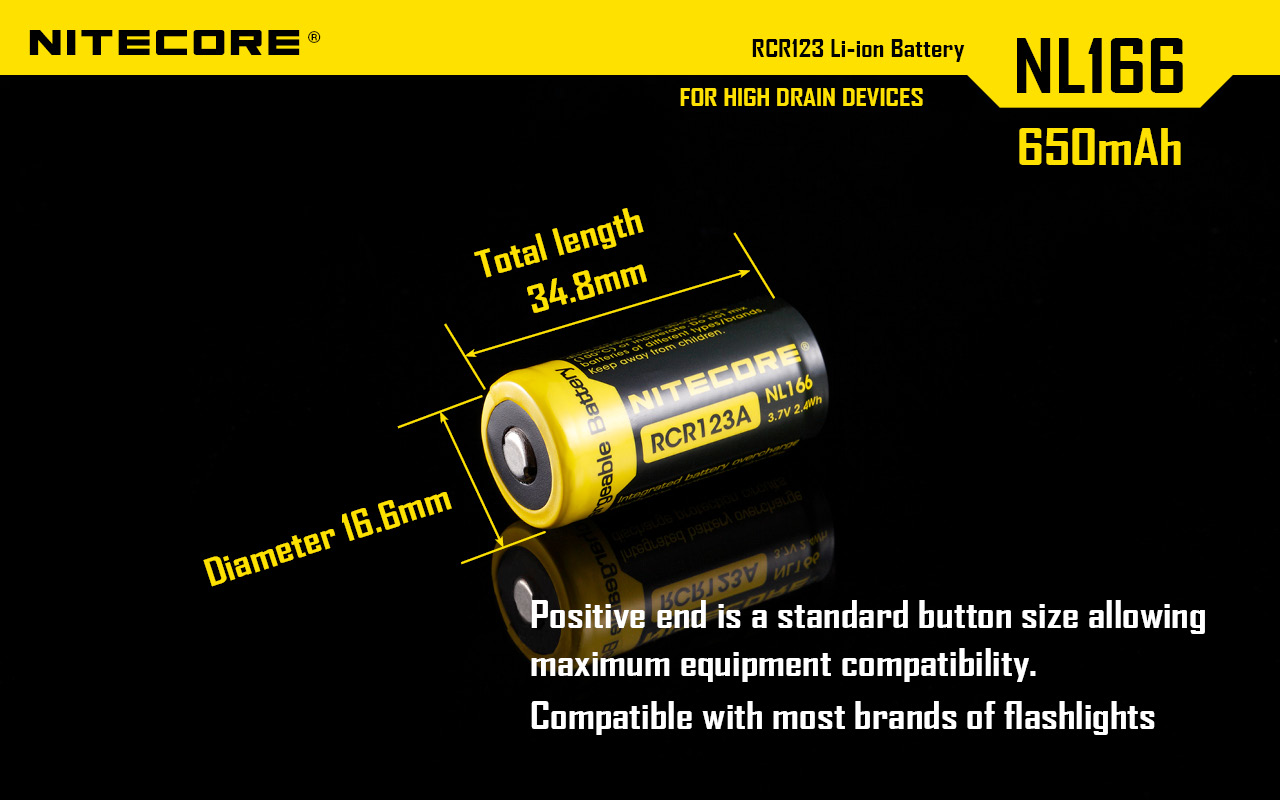

Length
34.8mm / 1.37"
Diameter
16.6mm / 0.65"
Weight
18g / 0.63 oz
Capacity
650mAh 3.7V 2.4Wh
Chemistry
Li-ion NMC Battery
Manufacturer
SYSMAX Innovations Co., Ltd.
Address
No.1021 Gaopu Road, Guangzhou, China
E-mail
info@nitecore.com
EU Authorised Representative
Lienco SAS, 8 Rue Marcel Cerdan, 77600, Bussy Saint Georges, France
Usable Extinguishing Agent
Water / Water mist
Hazardous Substances
None
Critical raw materials present in the battery in a concentration of more than 0.1 % weight by weight
| Information on Ingredient (Chemical Name) | Concentration or Concentration Ranges (%) | Information on Ingredient (Chemical Name) | Concentration or Concentration Ranges (%) |
|---|---|---|---|
| Aluminum | ≤5 | Copper | ≤10 |
| Lithium Nickel Cobalt Manganese Oxide | ≤42 | Graphite | ≤24 |
| Lithium Hexafluorophosphate | ≤18 | Polyvinyl Chloride Resin | ≤2 |
| Polyvinylidene Fluoride Resin | ≤1 | Nickel | 0.5 |
