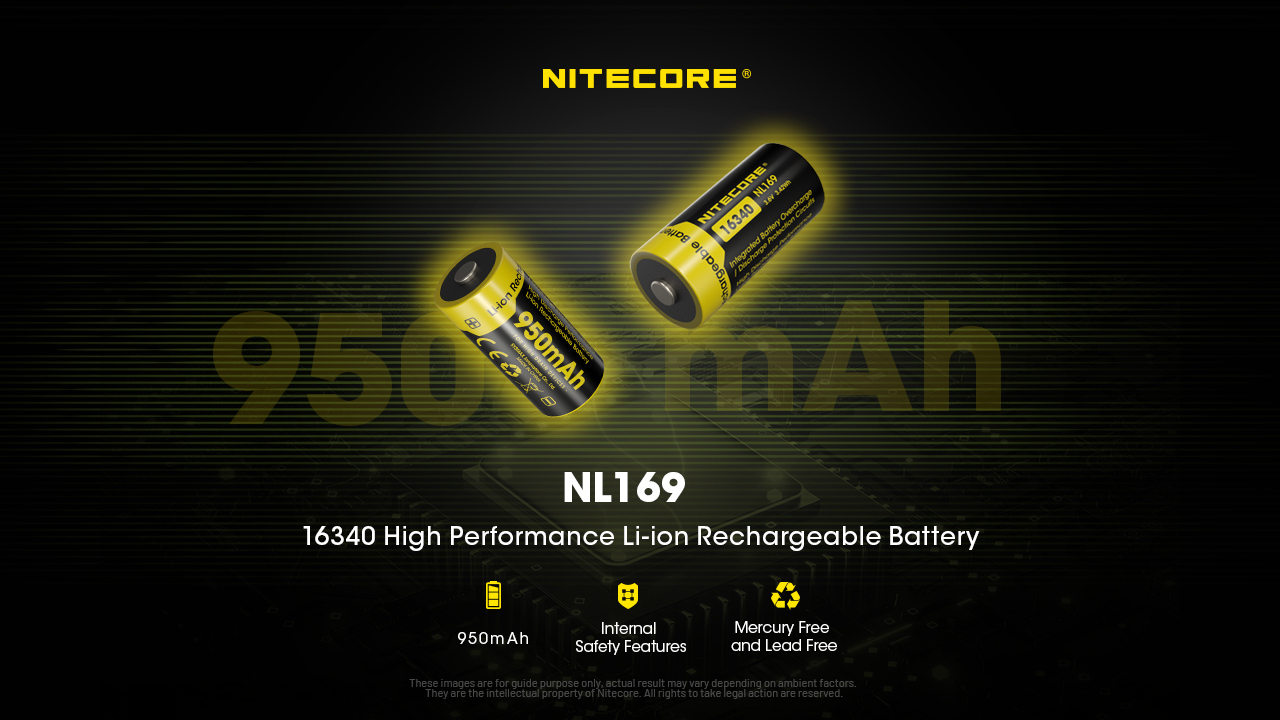

NL169
16340 High Performance Li-ion Rechargeable Battery

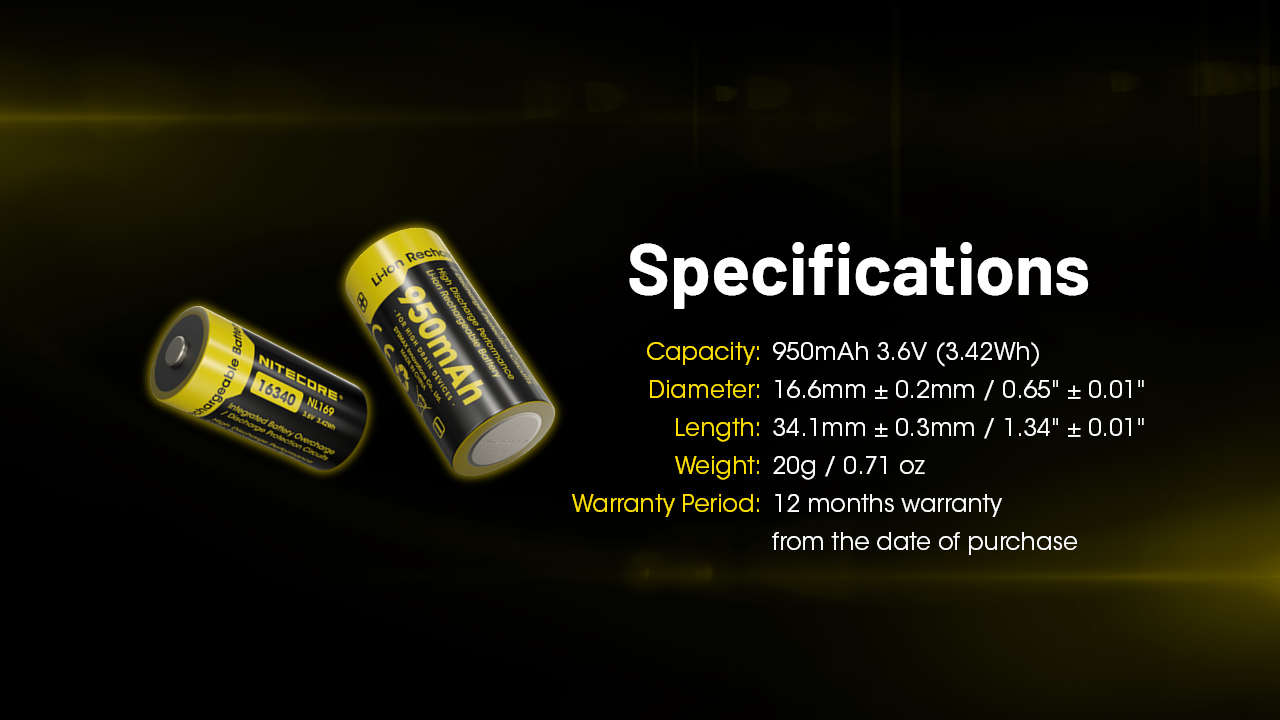

PRODUCT SPEC
Model
NL169
Length
34.1mm±0.3mm/ 1.34"±0.01"
Continuous Discharge Current
2A
Diameter
16.6mm±0.2mm / 0.65"±0.01
Weight
20g / 0.71 oz
Capacity

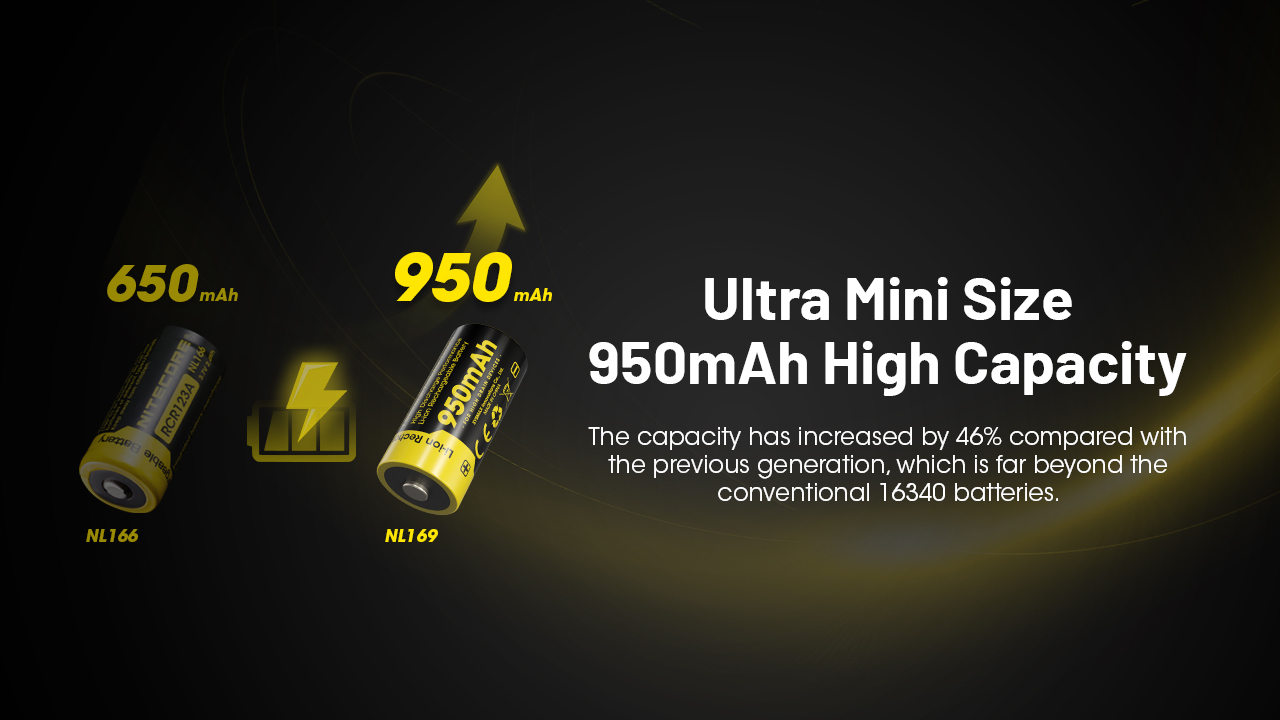

950mAh 3.6V (3.42Wh)
Chemistry
Li-ion NMC Battery
Manufacturer
SYSMAX Innovations Co., Ltd.
Address
No.1021 Gaopu Road, Guangzhou, China
E-mail
info@nitecore.com
EU Authorised Representative
Lienco SAS, 8 Rue Marcel Cerdan, 77600, Bussy Saint Georges, France
Usable Extinguishing Agent
Water / Water mist

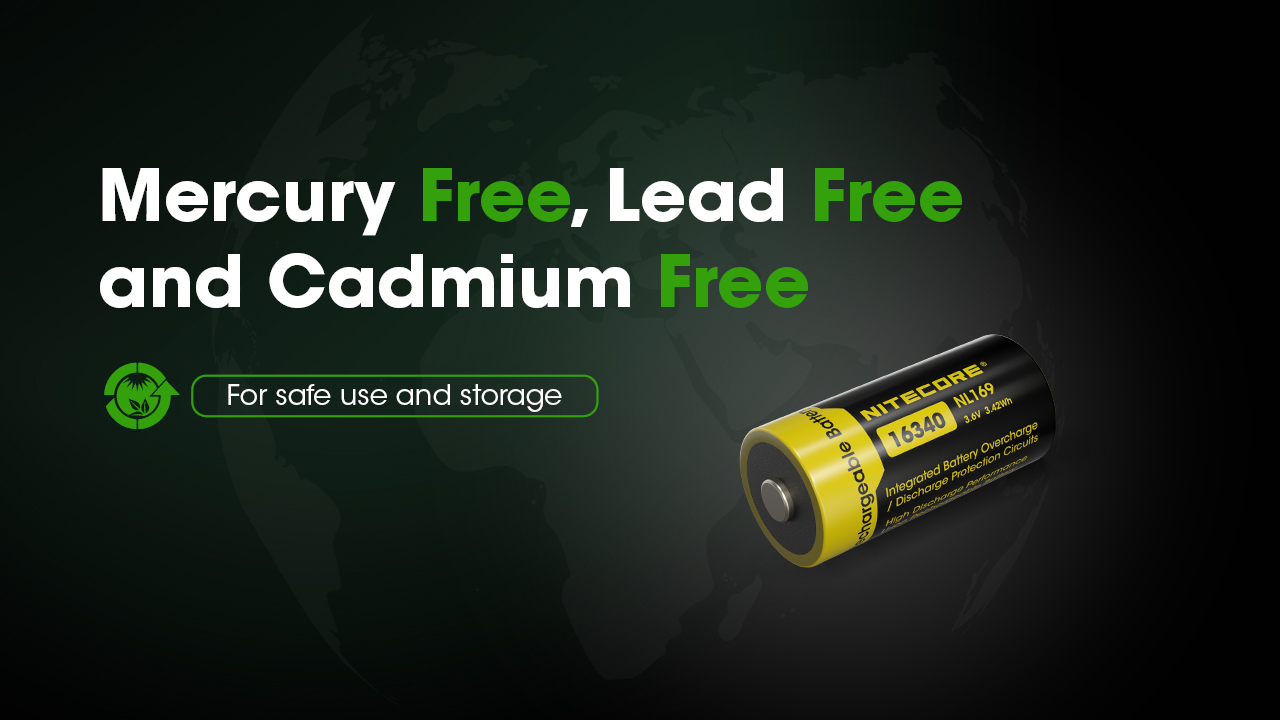

Hazardous Substances
None
Critical raw materials present in the battery in a concentration of more than 0.1 % weight by weight
| Information on Ingredient (Chemical Name) | Concentration or Concentration Ranges (%) | Information on Ingredient (Chemical Name) | Concentration or Concentration Ranges (%) |
|---|---|---|---|
| Cobalt Lithium Manganese Nickel Oxide | ≤39 | Graphite | ≤26 |
| Lithium Hexafluorophosphate | ≤14 | Copper | ≤10 |
| Aluminum | ≤8 | Polyvinyl Chloride Resin | ≤1.3 |
| Polyvinylidene Fluoride Resin | ≤1.2 | Nickel | 0.5 |
