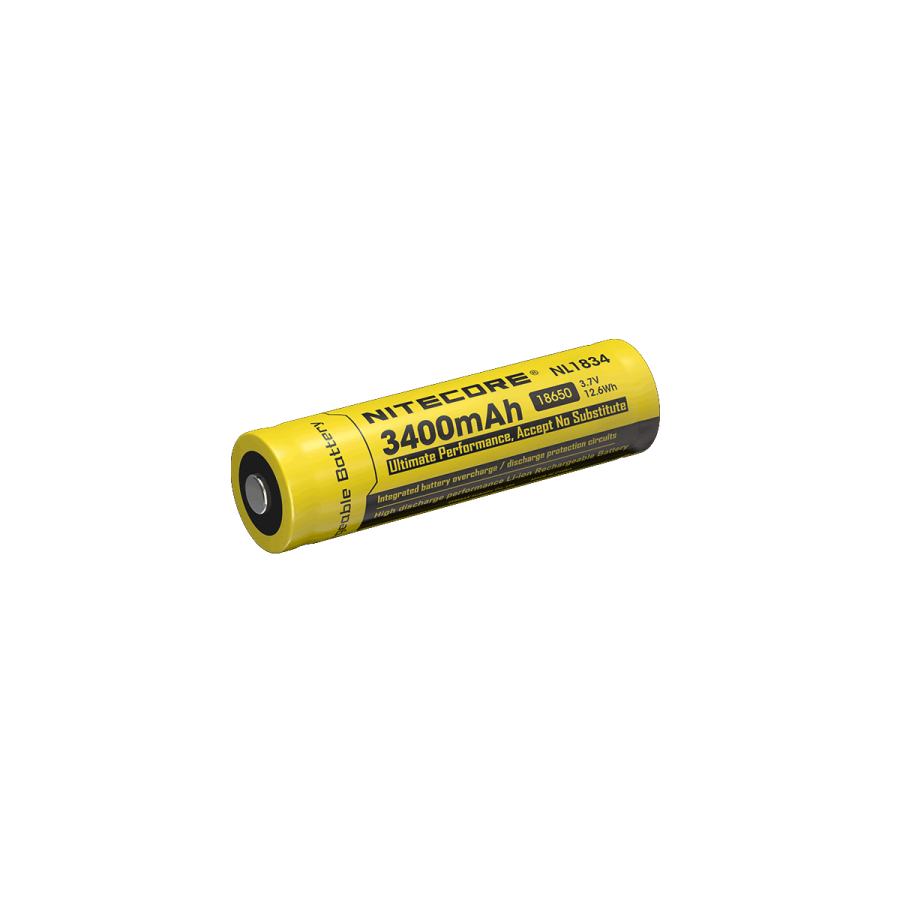

NL1834

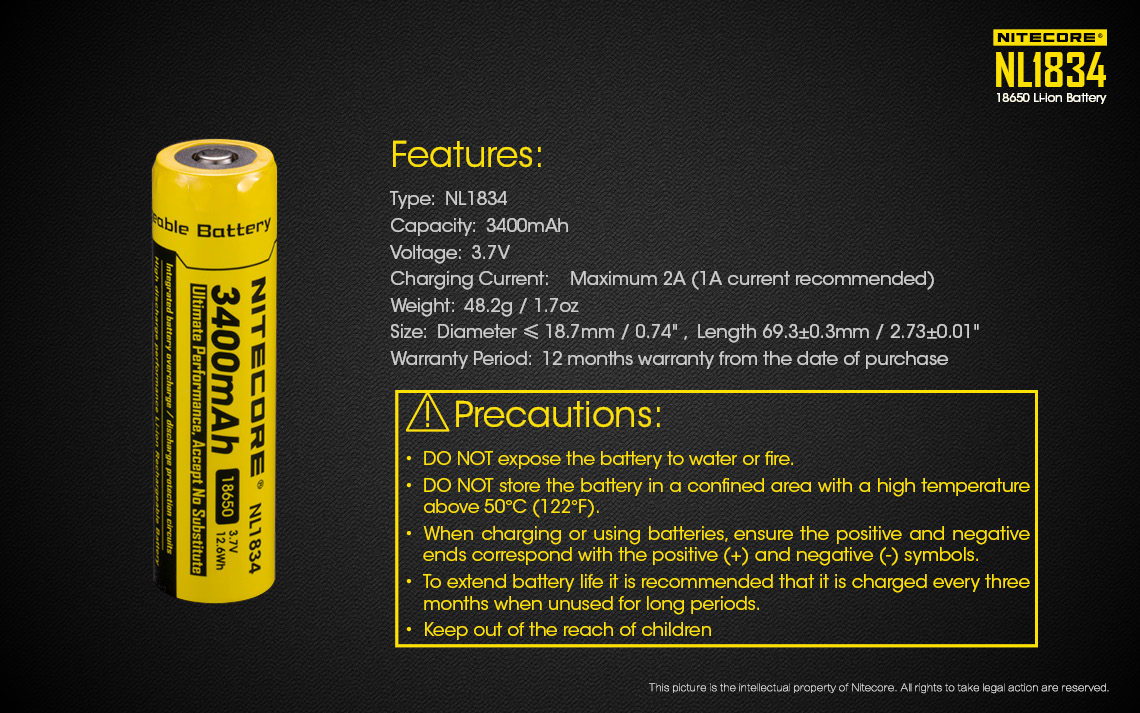

High-Performance Li-ion Rechargeable Battery

NL1834

PRODUCT DETAILS
PRODUCT SPEC

PRODUCT SPEC

Model
NL1834
Capacity
3,400mAh 3.7V (12.6Wh)
Continuous Discharge Current
2A

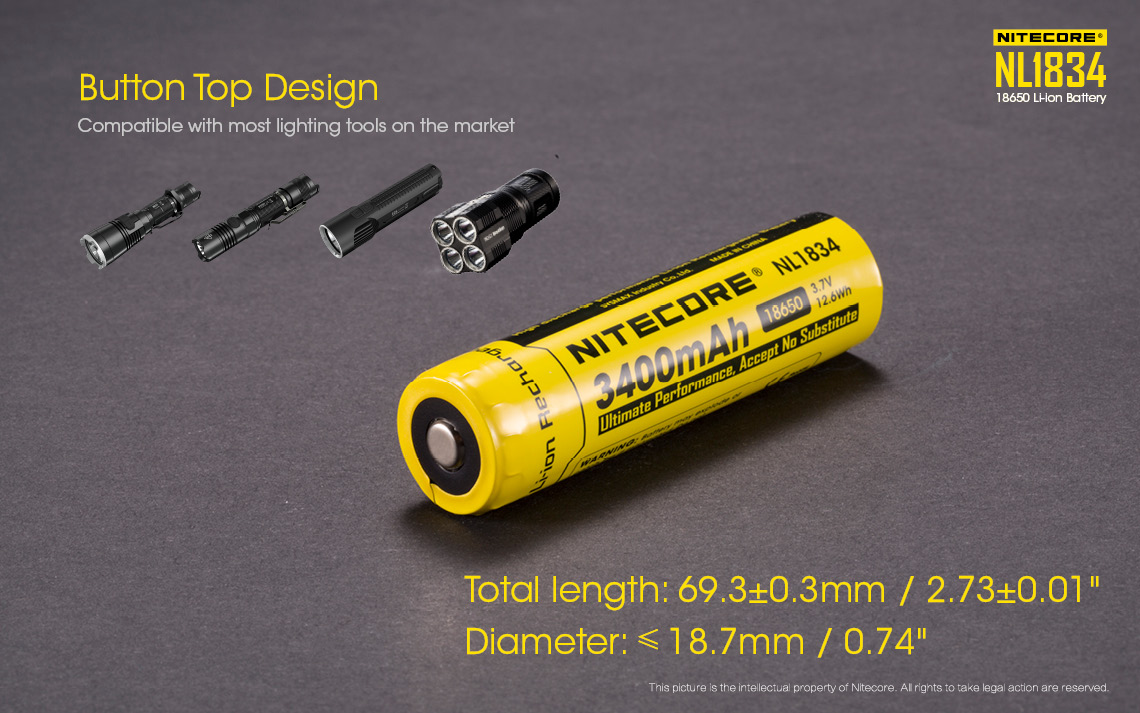

Length
69.3mm±0.3mm / 2.73"±0.01"
Diameter
≤18.7mm / 0.74"
Weight
49g / 1.73 oz
IP Rating
IPX6
Chemistry
Li-ion NMC Battery
Manufacturer
SYSMAX Innovations Co., Ltd.
Address
No.1021 Gaopu Road, Guangzhou, China
E-mail
info@nitecore.com
EU Authorised Representative
Lienco SAS, 8 Rue Marcel Cerdan, 77600, Bussy Saint Georges, France
Usable Extinguishing Agent
Water / Water mist
Hazardous Substances
None

Critical raw materials present in the battery in a concentration of more than 0.1 % weight by weight

Information on Ingredient (Chemical Name) Concentration or Concentration Ranges (%) Information on Ingredient (Chemical Name) Concentration or Concentration Ranges (%)
Lithium Nickel Manganese Cobalt Oxide 39.5 Carbon Black 1.44
Polyvinylidene Fluoride(PVDF) 0.7 Graphite 20.6
Carboxymethylcellulose 0.39 Styrene-Butadiene Rubber(SBR) 0.49
Polyethylene 2.24 Lithium Hexafluorophosphate 14.38
Copper 9.34 Aluminum 3.39
Nickel 0.43 Steelcase 7.1
