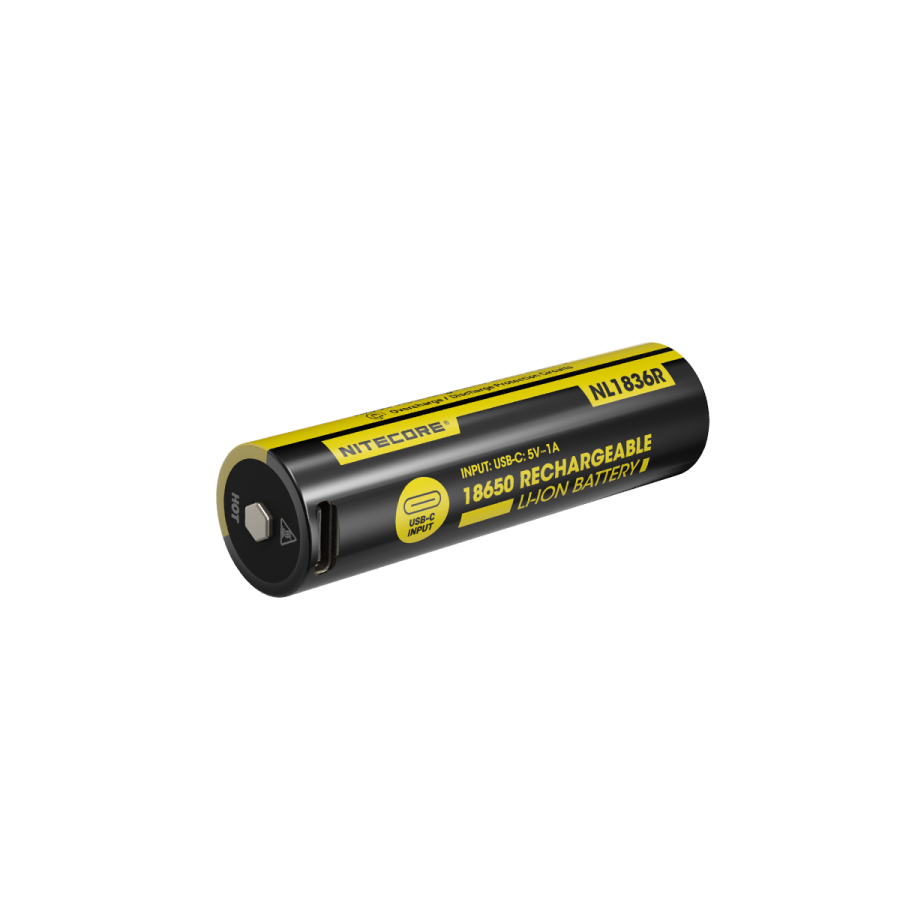

NL1836R

18650 USB-C Rechargeable Li-ion Battery

NL1836R

PRODUCT DETAILS
PRODUCT SPEC
p0
p1

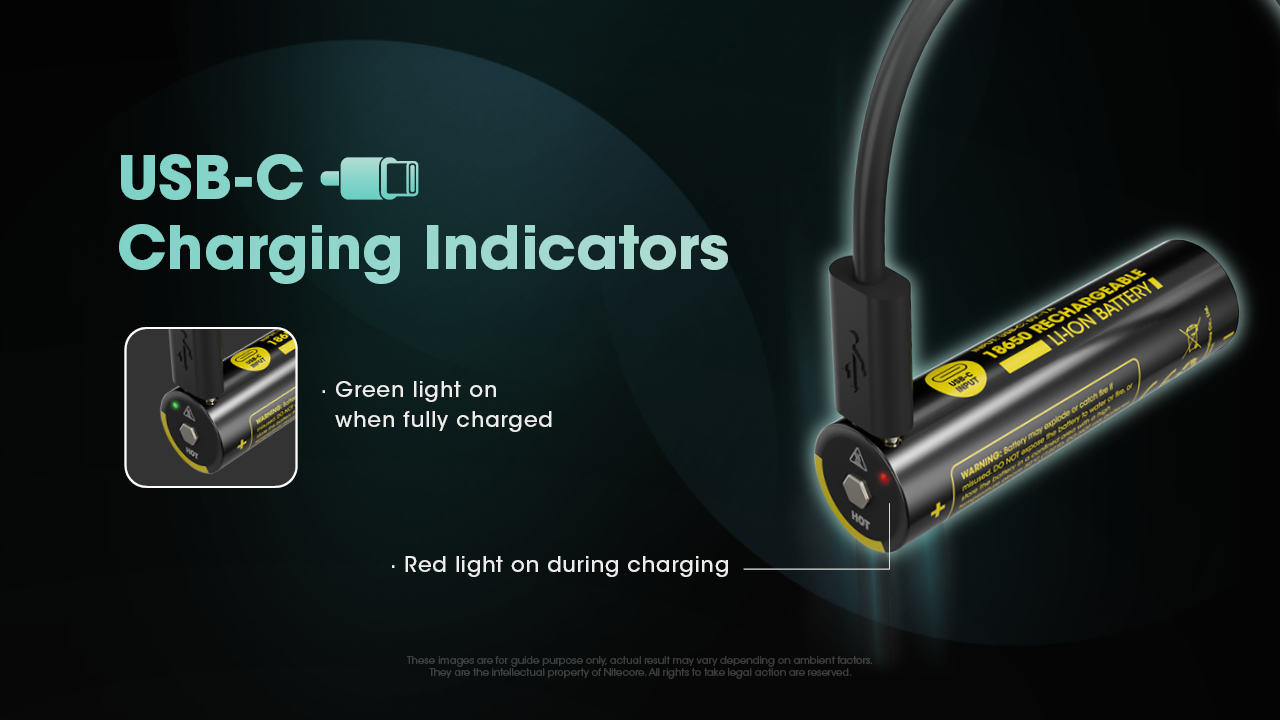

p2

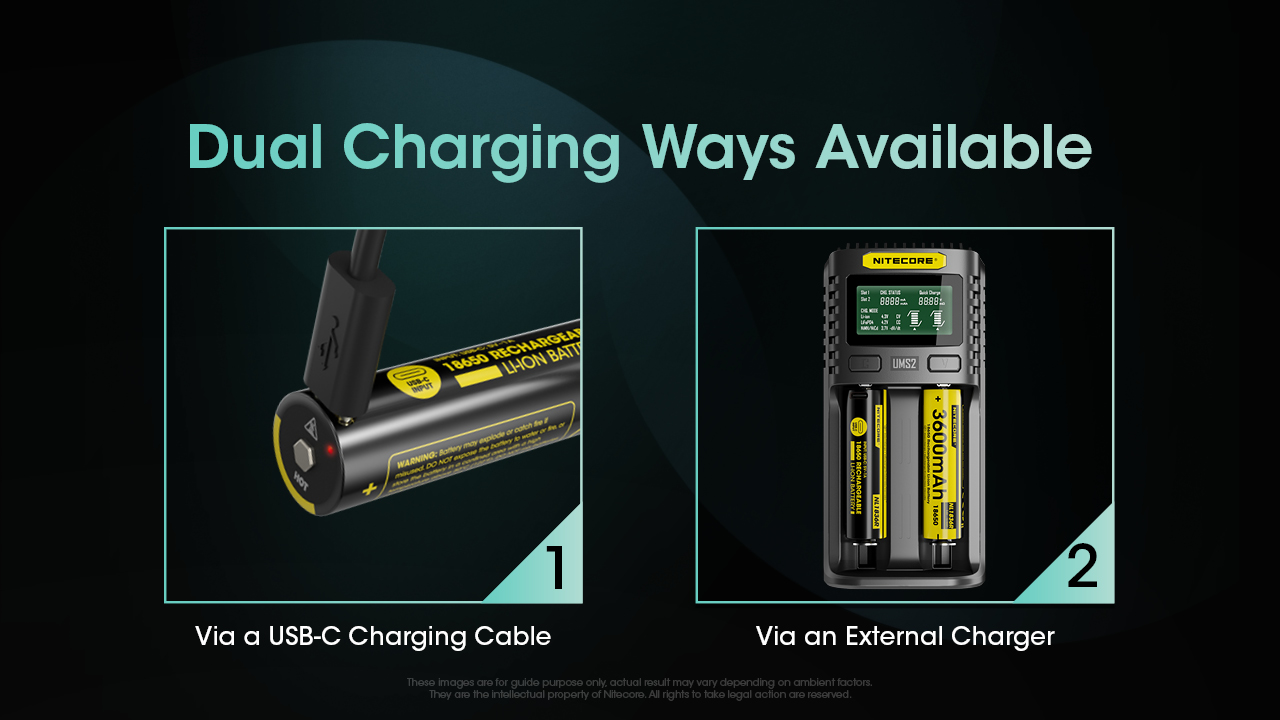

p3

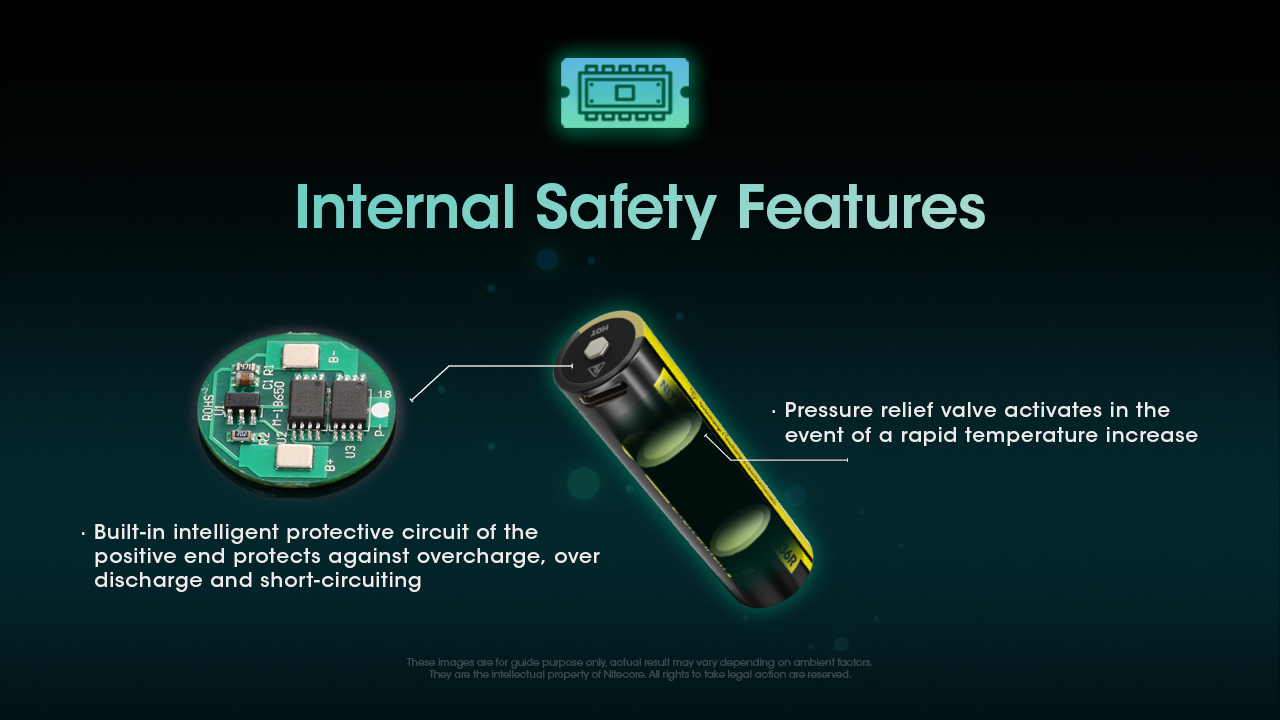

p4
p5
p6
p7
p8
p9
p10

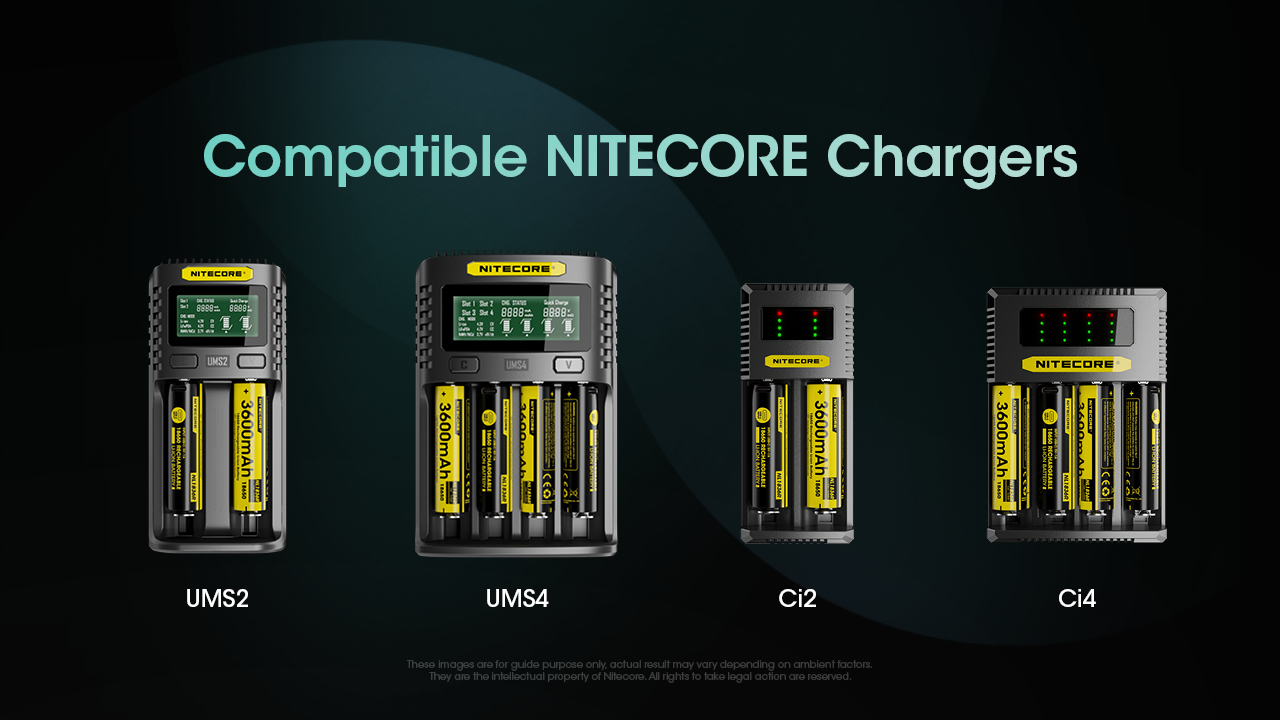

p11
p12

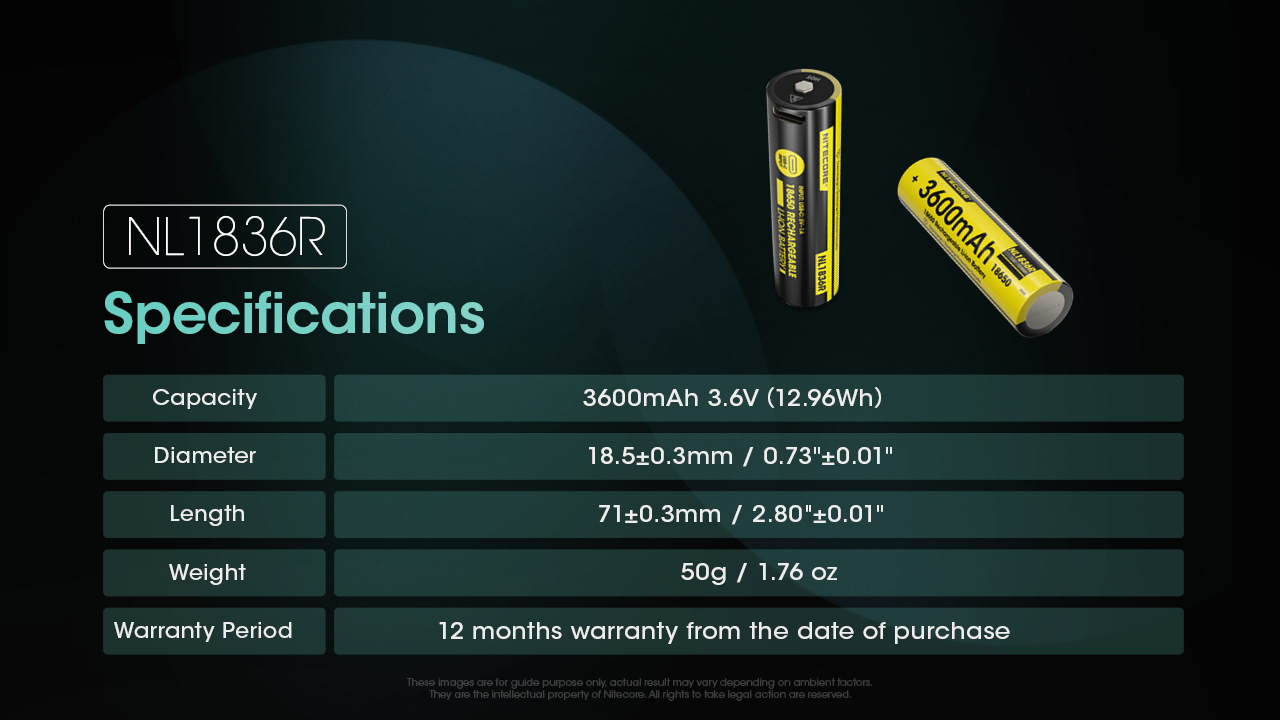

PRODUCT SPEC

Model
NL1836R

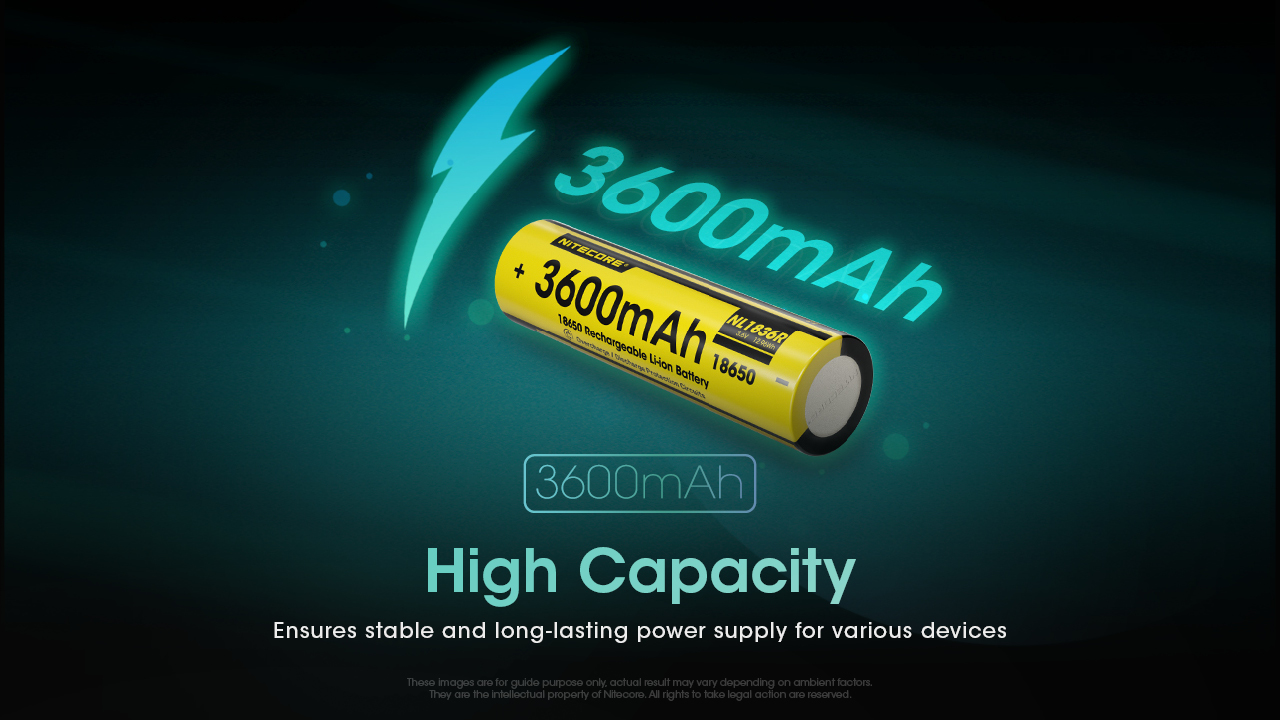

Capacity
3,600mAh 3.6V (12.96Wh)
Continuous Discharge Current
6A
Input
USB-C:5V⎓1A
Diameter
18.5±0.3mm / 0.73"±0.01"
Length
71±0.3mm / 2.80"±0.01"
Weight
50g / 1.76 oz
Chemistry
Li-ion NMC Battery
Manufacturer
SYSMAX Innovations Co., Ltd.
Address
No.1021 Gaopu Road, Guangzhou, China
E-mail
info@nitecore.com
EU Authorised Representative
Lienco SAS, 8 Rue Marcel Cerdan, 77600, Bussy Saint Georges, France
Usable Extinguishing Agent
Water / Water mist
Hazardous Substances
None

Critical raw materials present in the battery in a concentration of more than 0.1 % weight by weight

Information on Ingredient (Chemical Name) Concentration or Concentration Ranges (%) Information on Ingredient (Chemical Name) Concentration or Concentration Ranges (%)
Lithium Nickel Manganese Cobalt Oxide 39.5 Carbon Black 1.44
Polyvinylidene Fluoride (PVDF) 0.7 Graphite 20.6
Carboxymethylcellulose 0.39 Styrene-Butadiene Rubber(SBR) 0.49
Polyethylene 2.24 Lithium Hexafluorophosphate 14.38
Copper 9.34 Aluminum 3.39
Nickel 0.43 Steelcase 7.1
