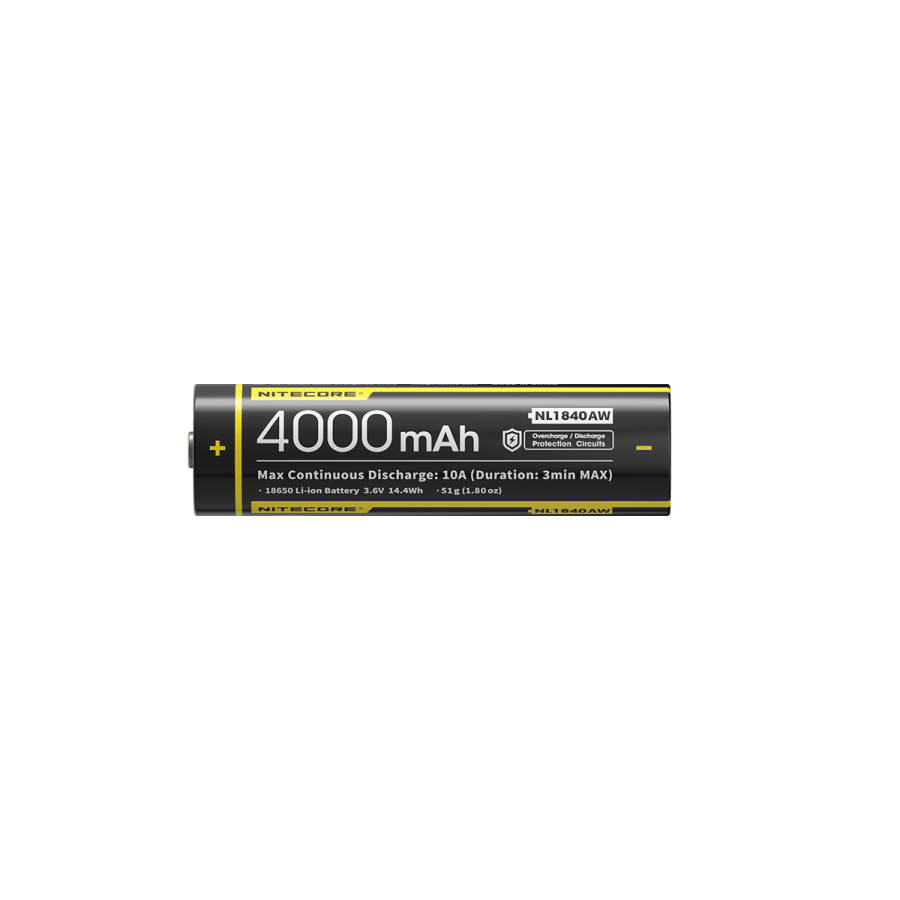

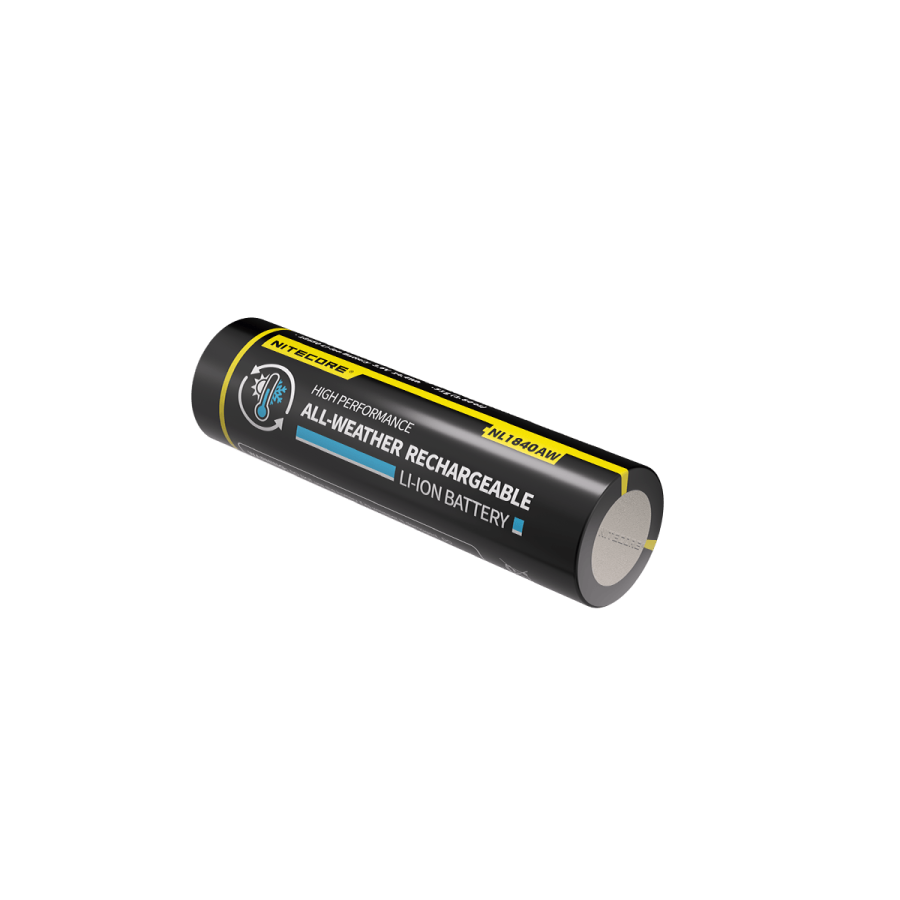

NL1840AW

All-Weather Li-ion Battery

NL1840AW

PRODUCT DETAILS
PRODUCT SPEC
p0
p1
p2
p3
p4

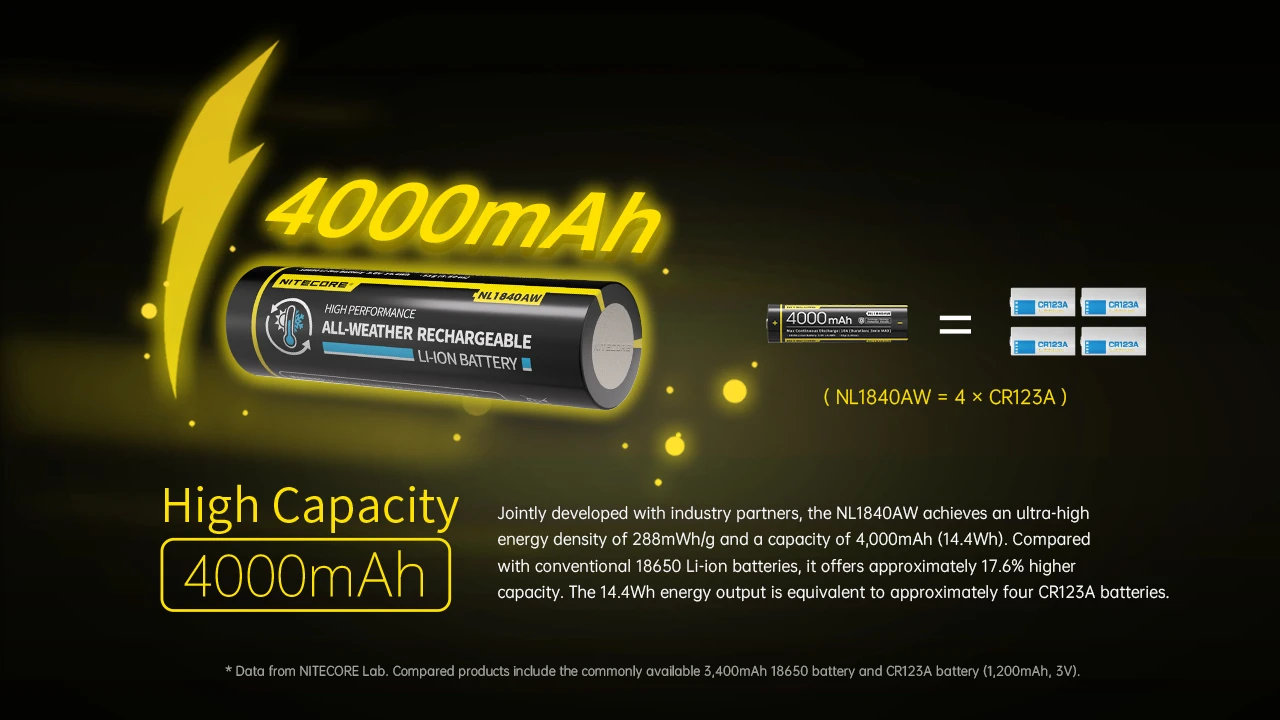

p5

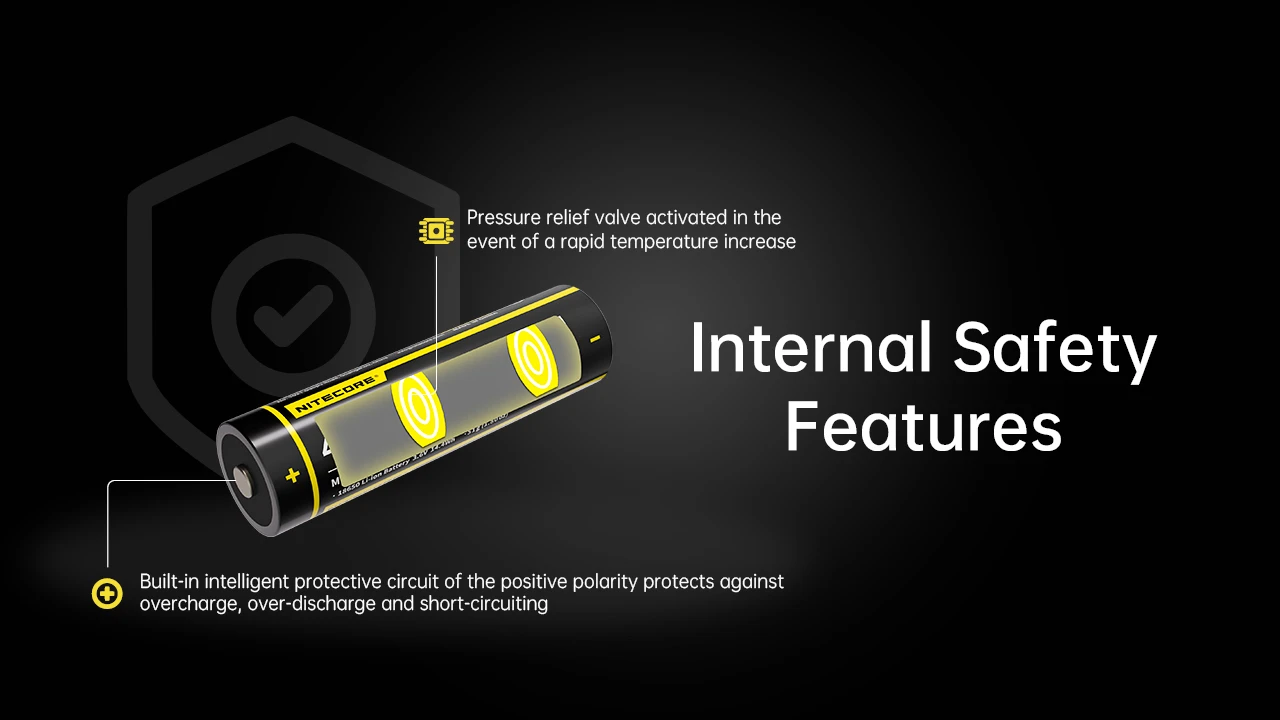

p6
p7

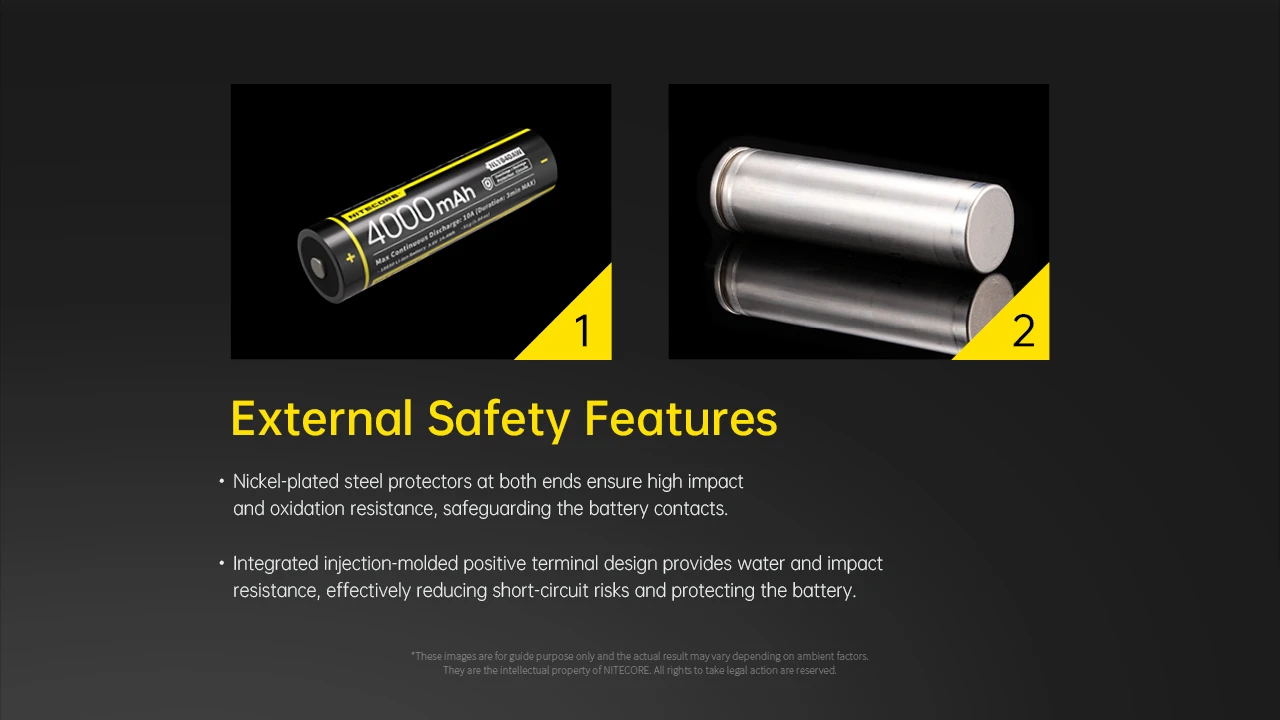

p8

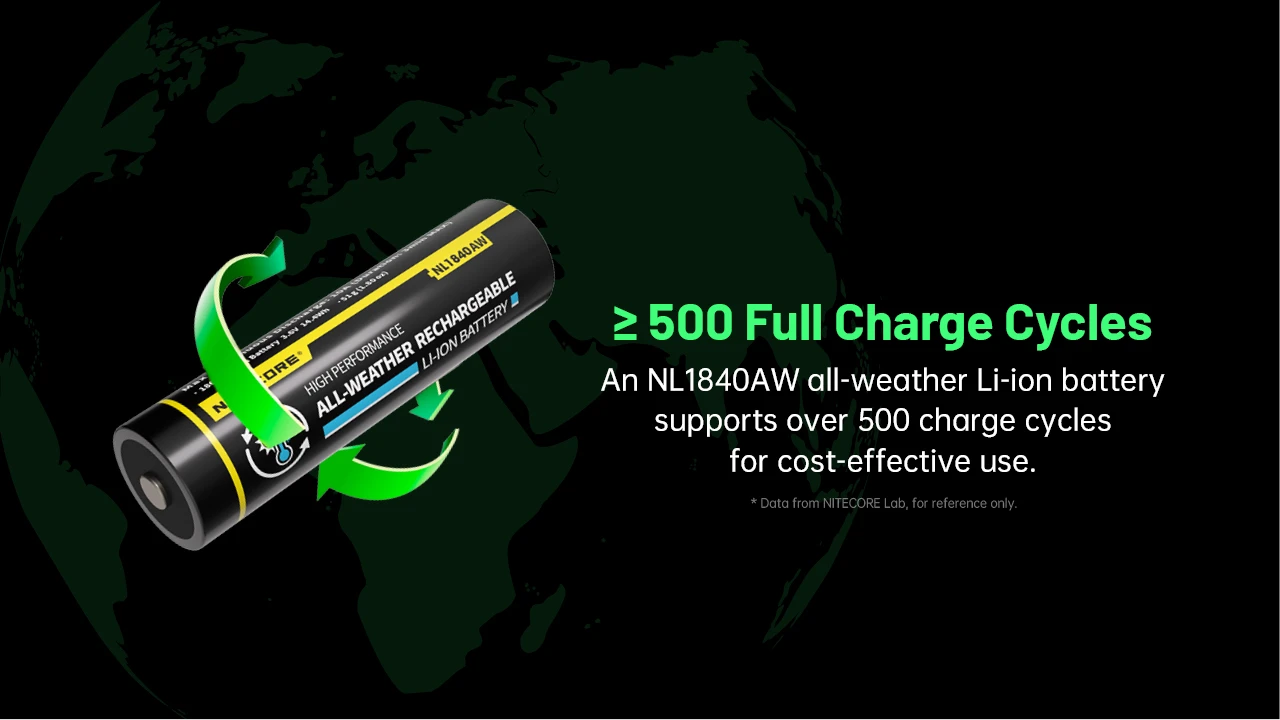

p9
p10
p11

PRODUCT SPEC

Model
NL1840AW
Capacity
4,000mAh 3.6V (14.4Wh)
Continuous Discharge Current
10A
Length
69.8±0.3mm
Diameter
18.6±0.3mm
Weight
51g / 1.80 oz
IP Rating
IPX6
Chemistry
Li-ion NMC Battery
Manufacturer
SYSMAX Innovations Co., Ltd.
Address
No.1021 Gaopu Road, Guangzhou, China
E-mail
info@nitecore.com
EU Authorised Representative
Lienco SAS, 8 Rue Marcel Cerdan, 77600, Bussy Saint Georges, France
Usable Extinguishing Agent
Water / Water mist
Hazardous Substances
None

Critical raw materials present in the battery in a concentration of more than 0.1 % weight by weight

Information on Ingredient (Chemical Name) Concentration or Concentration Ranges (%) Information on Ingredient (Chemical Name) Concentration or Concentration Ranges (%)
Lithium Manganese Nickel And Cobalt 42.62 Carbon Black 1.4
Polyvinylidene Fluoride(PVDF) 0.7 Graphite 19.7
Carboxymethylcellulose 0.39 Styrene-Butadiene Rubber(SBR) 0.45
Polyethylene 3.24 Lithium Hexafluorophosphate 10.8
Copper 8.5 Aluminum 3.8
Nickel 0.3 Steelcase 8.1
